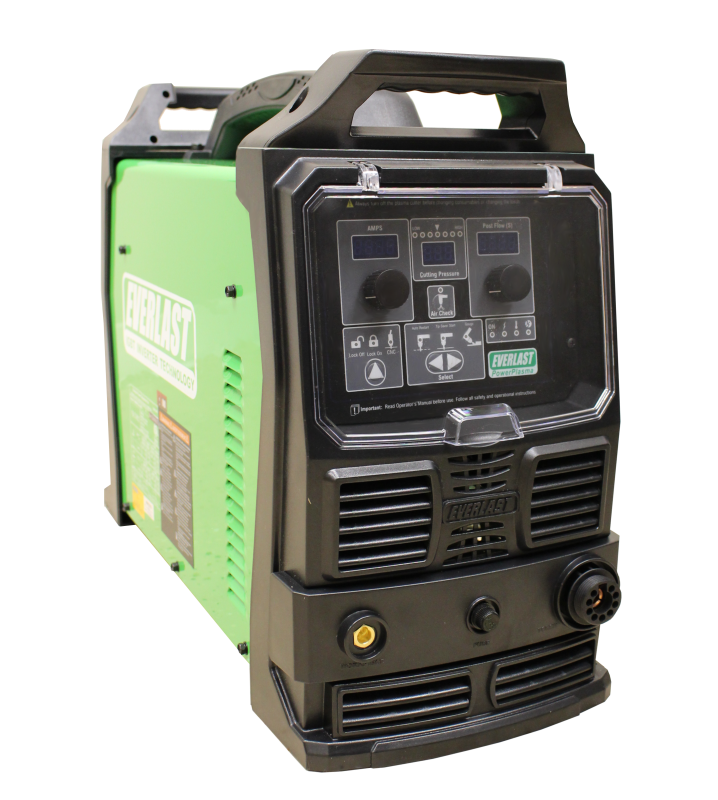

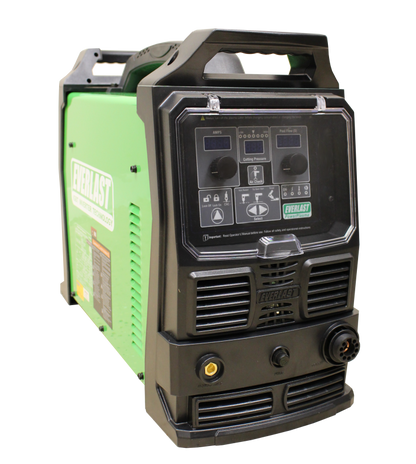

The heavy hitter of the lineup. This package pairs the Everlast PowerPlasma 102i, a 100-amp IGBT inverter plasma cutter, with a dedicated iPTM-100 CNC machine torch for serious plate work on your table. Like every plasma cutter from CNC X WRIGHT, it comes with our CNC X WRIGHT Custom CNC Communication Cable, so you can connect it to your table controller right away.
The 102i cuts 3/4" plate every day and makes quality cuts through 1-1/8" at slower speeds. It runs on 240V single-phase or three-phase power, so it fits a well-equipped home shop as well as a commercial fab floor. The Italian-designed iPTM-100 torch uses a back-striking blowback start for longer consumable life, and it works with shielded and unshielded consumables. The high-frequency-free start won't interfere with your table's electronics.
Cut Capacity (CNC, mild steel)
- Up to 3/4" for everyday production cutting (best speed and quality)
- Up to 1-1/8" clean cut (edge start)
- Up to 1-3/8" severance at reduced speed
- Pierces 5/8" to 3/4" with automatic torch height control (THC)
- For stainless, expect about 25% less capacity; for aluminum, about 40% less
Key Features

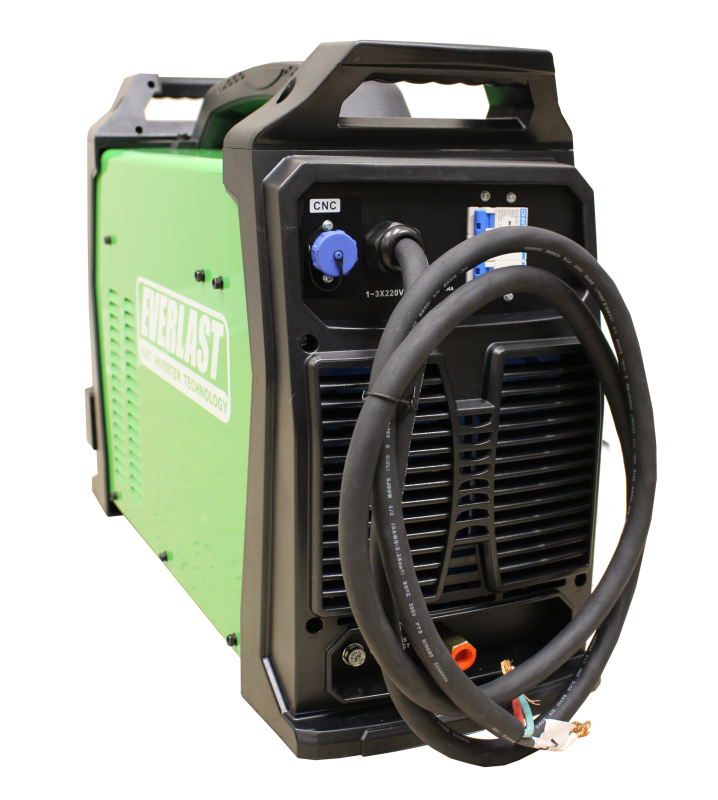

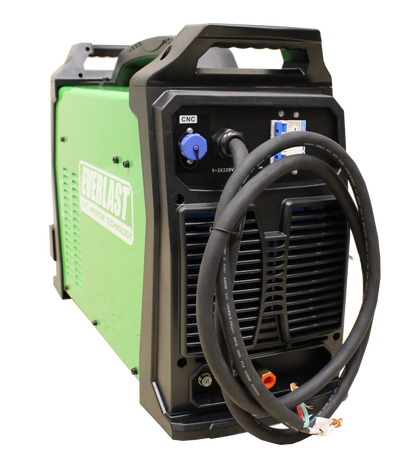

- Built-in CNC interface port for plasma table use
- 60% duty cycle at 100A; 100% at 80A
- Runs on 240V single-phase or three-phase

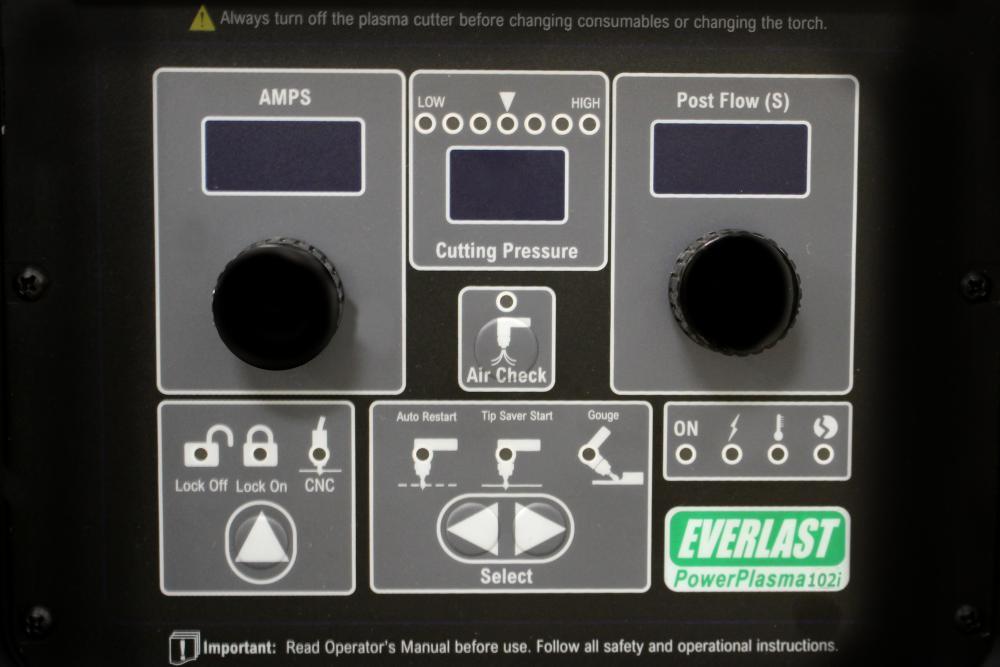

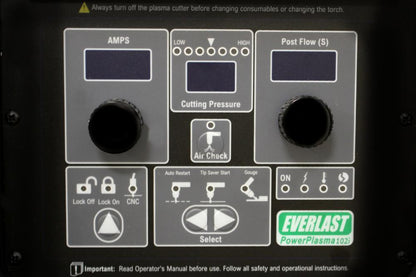

- Blowback pilot arc start (no high frequency) for rusty and painted metal
- 3-second pilot arc tip saver
- Adjustable post-flow up to 50 seconds for longer torch and consumable life
- Front-mounted air pressure gauge and low-air safety
- Over-current and duty cycle protection with a warning light
- Cuts steel, stainless, aluminum, copper, titanium, cast iron and more

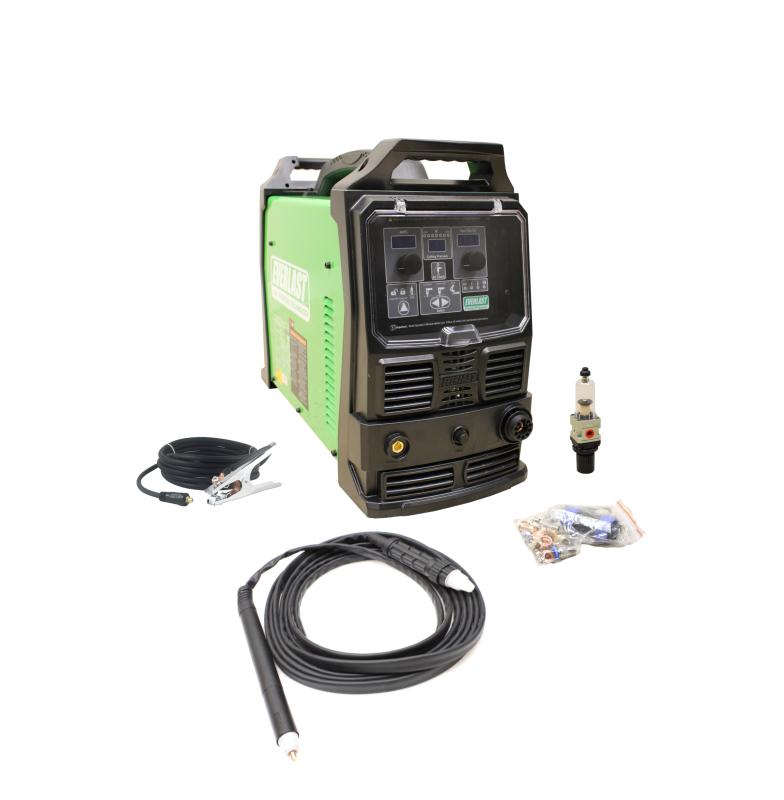

What's in the Box
- PowerPlasma 102i power unit
- CNC X WRIGHT Custom CNC Communication Cable (included free with every CNC X WRIGHT plasma cutter)
- iPTM-100 CNC machine torch with 24 ft lead and Euro-style quick connect
- Ground clamp
- Air filter / water trap
- Starter consumables: 5 electrodes and 5 nozzles (1.5mm)
A hand-held torch is not included, but can be purchased separately.
Specifications
- Input: 220/240V, single or three phase
- Output: 20–100A
- Max input amps (240V single phase): 82A inrush / 64A rated
- Recommended air: 75 psi; compressor 8 CFM @ 90 psi with a 60-gallon tank
- Dimensions: 25" × 9.5" × 15"
- Weight: 58 lb
- Manufacturer warranty: 5 years
Good to Know
- Free UPS Ground shipping: shipping is included in the price.
- A separate inline air dryer is required. The included water trap does not remove all moisture, and wet air shortens consumable life and can damage the torch.
- Generator use requires a "clean power" generator rated for at least 19,000 surge watts.
- This is the 240V version. A 480V three-phase version is also made; contact us if you need it.
Pair It With
- Our Mach 3 USB or MyPlasm CNC control box, with an automatic torch height control (THC) option
- Questions about fit or setup? Email sales@cncxwright.com, or book Tech & Consult Time.
