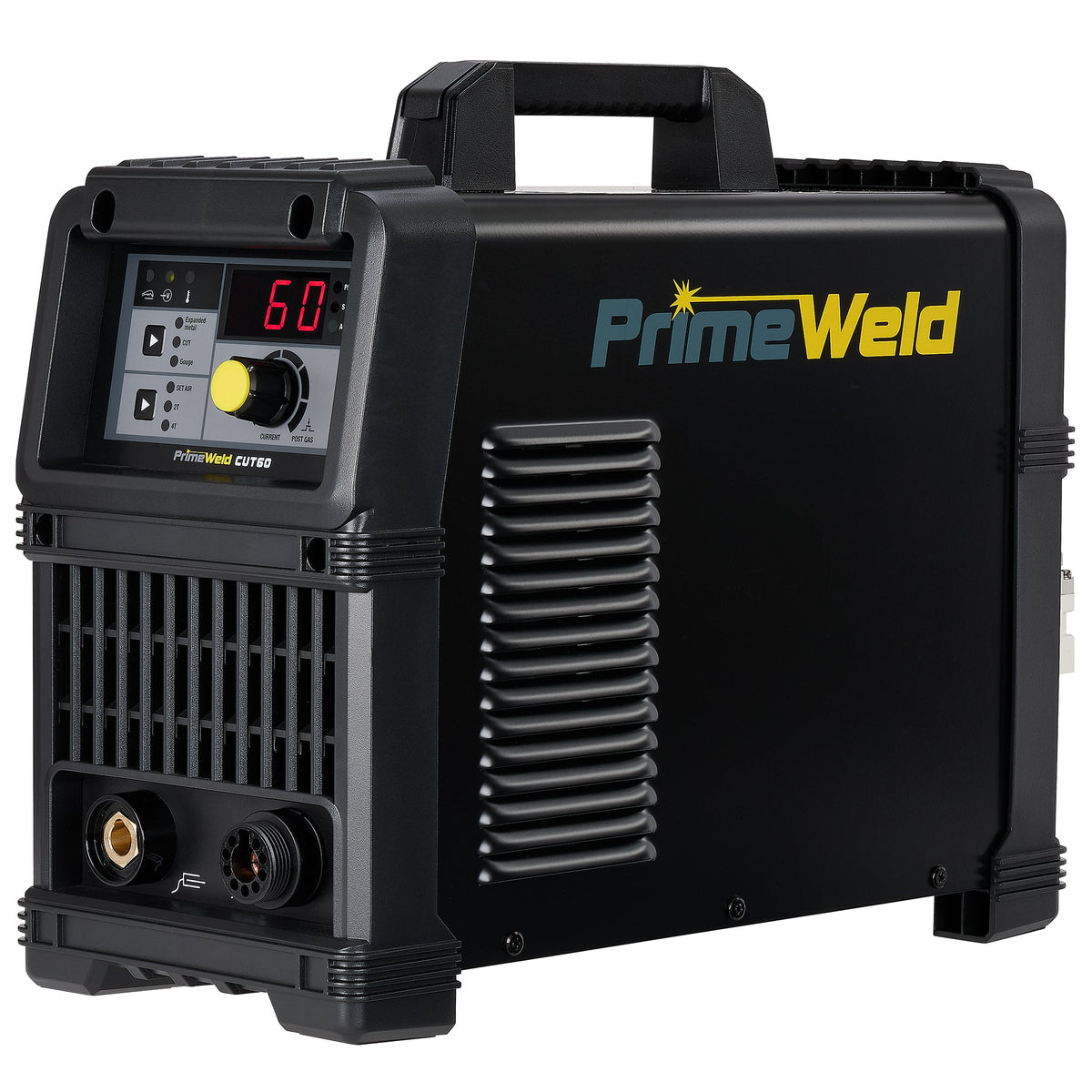

PrimeWeld CUT60 Dual Voltage 60-Amp Plasma Cutter

A 60-amp dual-voltage plasma cutter that runs on 120V or 240V, packaged with a machine torch for your table and the CNC X WRIGHT Custom CNC Communication Cable so you can connect it to your table controller right away. Plug it into a standard 120V outlet for lighter work, or 240V when you need the full 60 amps.

Cut Capacity

• Rated by the maker up to 7/8" (20 mm) steel at 240V
• Output: 20–30A on 120V, 20–60A on 240V

Key Features

• CNC port for plasma table use
• 60% duty cycle at max output; 100% at 46A on 240V (23A on 120V)
• Blowback pilot arc start (no high frequency)
• Dual voltage: 120V (30A breaker) or 240V (50A breaker), single phase

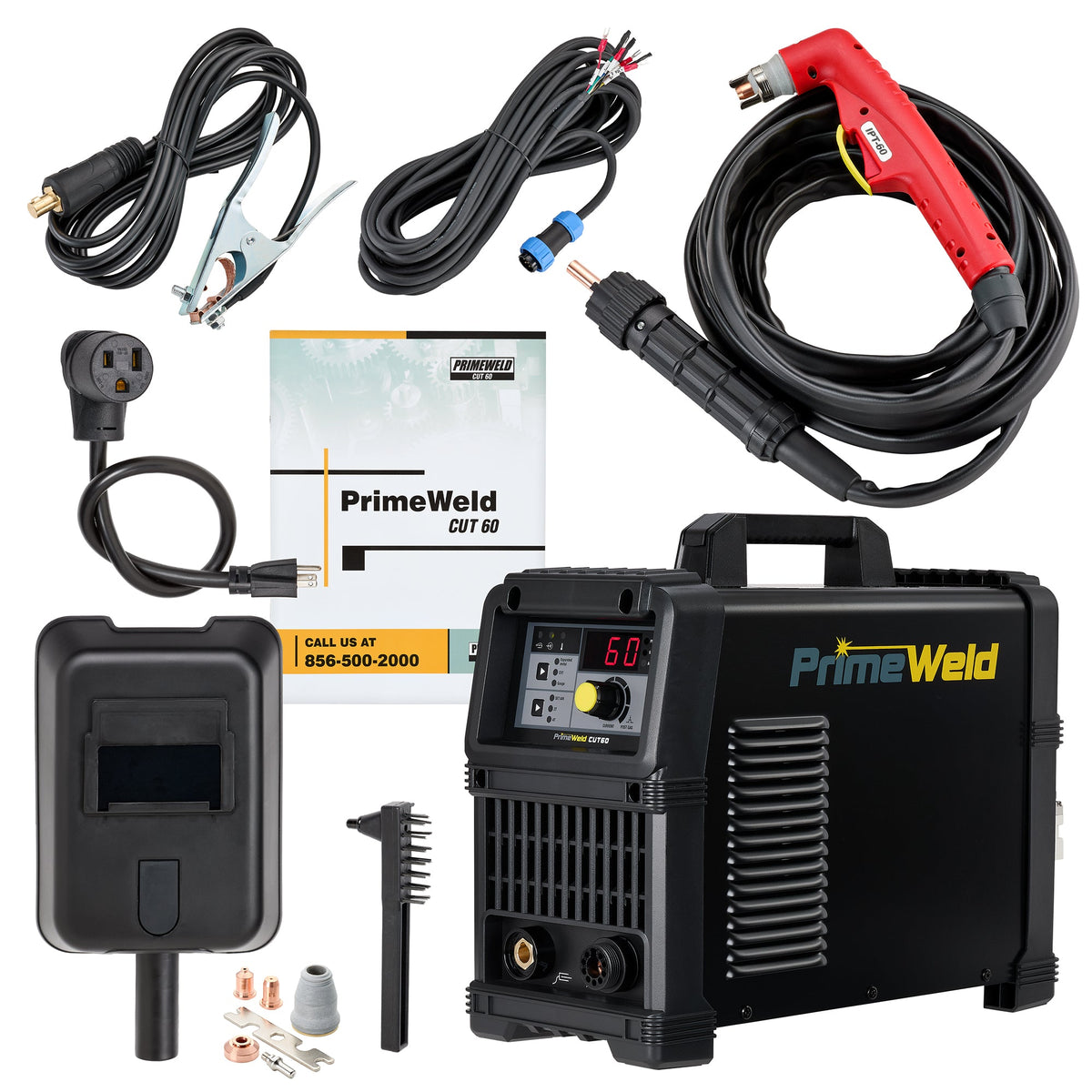

What's in the Box

• PrimeWeld CUT60 power unit
• CNC X WRIGHT Custom CNC Communication Cable
• Machine torch for CNC table mounting

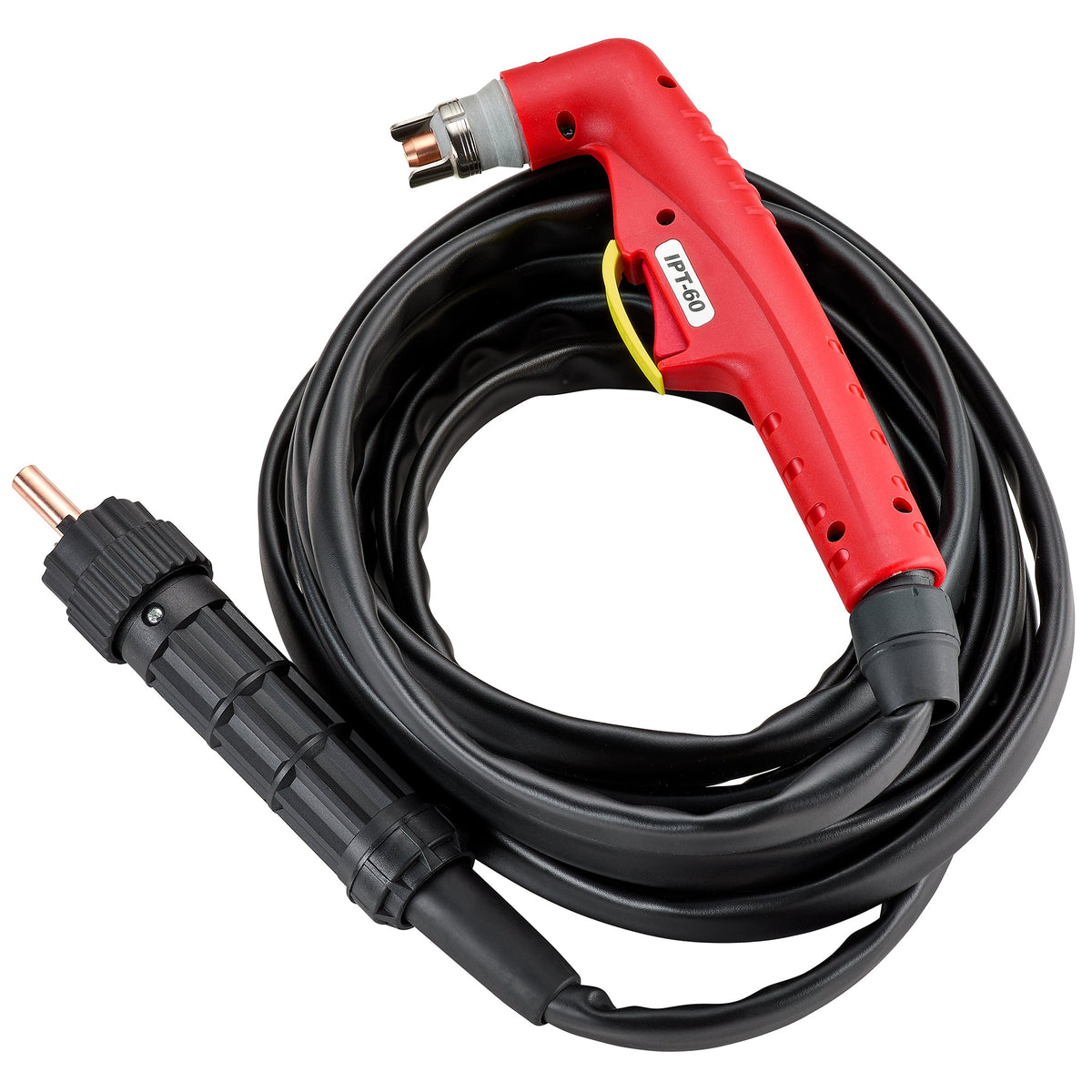

• Hand-held cutting torch
• Gas regulator

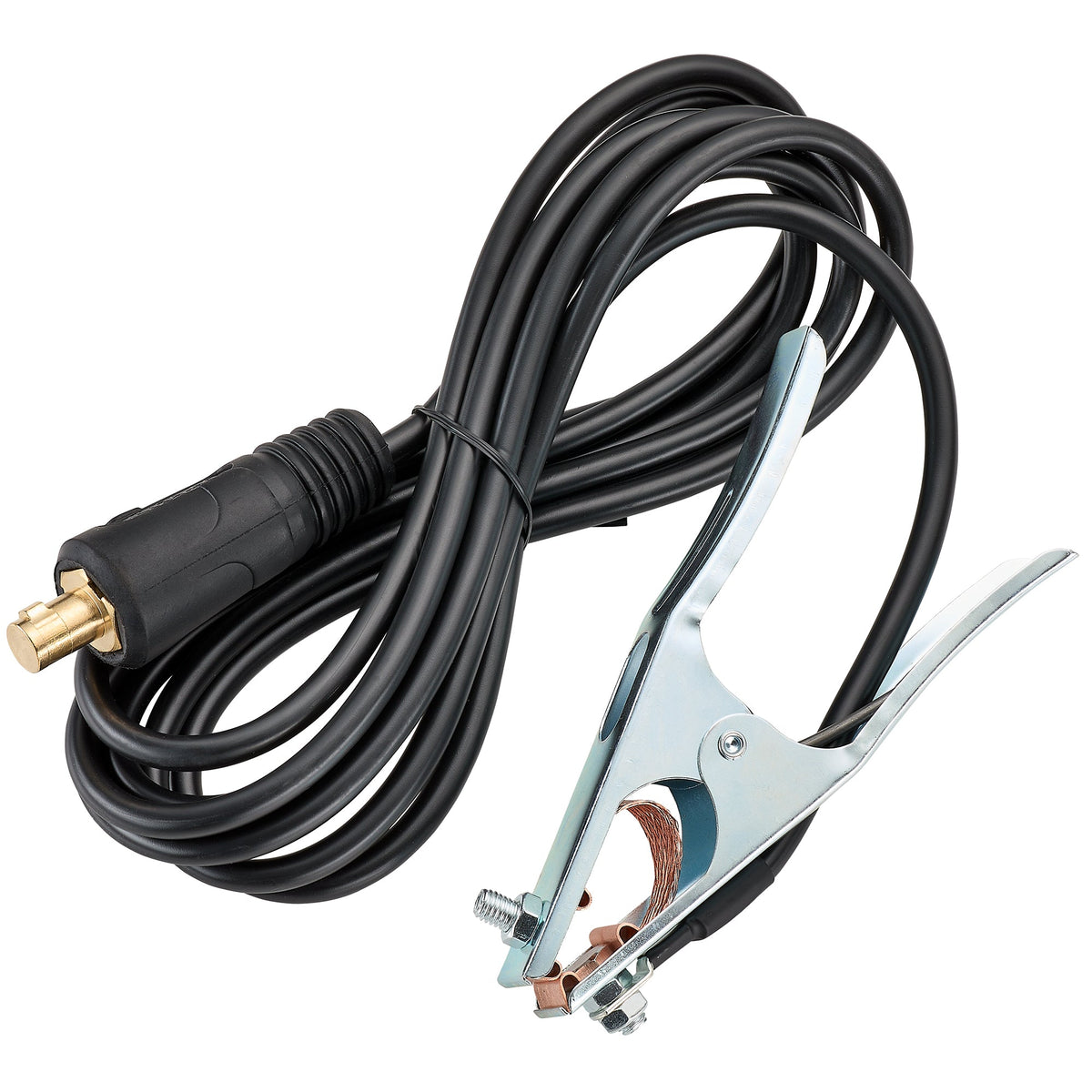

• Ground clamp with 12 ft cable
• 220V-to-110V power adapter

Specifications

• Input: 120V/240V, single phase, 50/60 Hz
• Output: 20–60A
• Weight: 30 lb
• Manufacturer warranty: 3 years

Good to Know

• Free shipping: shipping is included in the price.
• A separate inline air dryer is recommended. Wet air shortens consumable life.

Pair It With

• Our Mach 3 USB or MyPlasm CNC control box
• Questions about fit or setup? Email sales@cncxwright.com, or book Tech & Consult Time.
