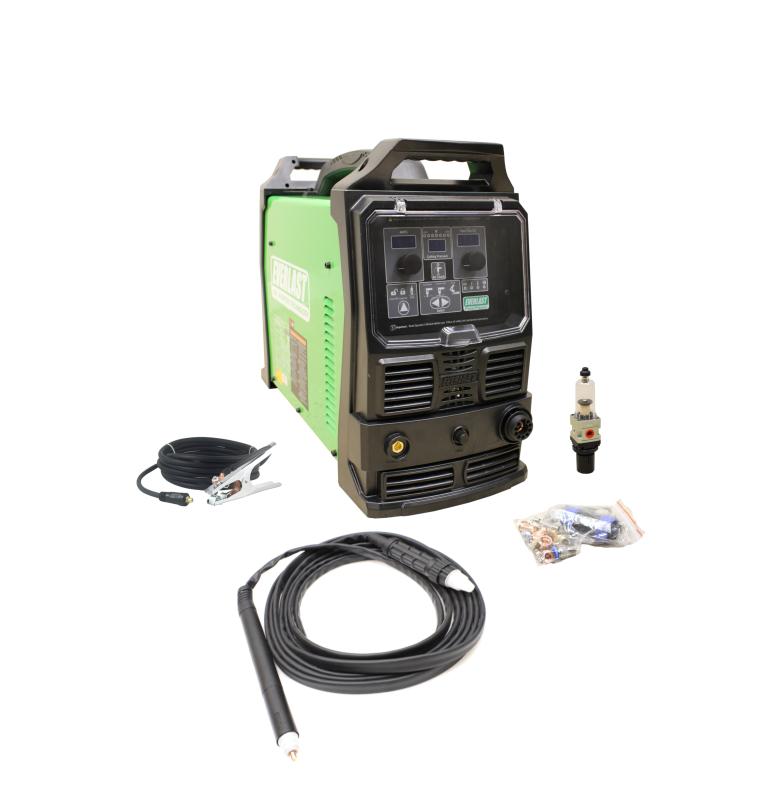

Everlast Plasma Cutter 82I CNC Ready

Everlast Plasma Cutter 82I CNC Ready

$1,745.00
$1,745.00
Sale Sold out
If you are looking for a professional level plasma table machine that you aren't likely to quickly out grow, the Everlast PowerPlasma 82i with the CNC package is likely the one that you'd choose.  The portability, power, and performance, combine with the price to make the PowerPlasma 82i one of the best choices available in it's class when you consider power/purchase cost ratios.  You get the best cut per amp per dollar paid for the PowerPlasma 82i CNC over any other 80 amp cutter in it's class. For routine daily use, the unit is recommended for cutting 5/8" thick plate metal.  And for maximum cut capability on CNC, this unit is capable of producing quality cuts of 1" or greater (at reduced speeds).   Considering the purchase price, where else will you find a plasma cutter ready for plasma table use with a built in CNC socket and CNC torch?  Regarding portability, the unit's size is compact and can be easily stored or placed near the work area.  The new Italian designed PTM-80 CNC/machine torch is rugged and features improved consumable life with the patented "back striking" design.  This blowback design torch comes with a variety of consumable choices, shielded and unshielded.  True it has a professional feel, capability and performance, but it also offers something for the hobbyist, with standard 240V operating input, which makes it right at home in any well equipped home shop plasma table or garage.


Features & Benefits:
  • Easy starting with Blow Back Pilot arc allows easy cutting of rusty and painted metals
  • Cuts virtually any type of metal with ease
  • Simple to use torches with inexpensive service parts and consumables
  • Commercial/Industrial class, 60% Duty cycle at 80 amps
  • Clean, smooth cuts and improved consumable life with the new Italian designed iPT 80 torch
  • Blowback start starts arc without the need of High Frequency which can interfere with surrounding electronics
  • Pilot arc improves performance and cutting on dirty, painted, or rusted metals
  • 3 Second pilot arc tip saver feature shuts down pilot arc after 3 seconds of contiuous operation if no cutting is present to prevent premature consumable wear
  • Adjustable post flow control up to 50 seconds to improve consumable and torch life

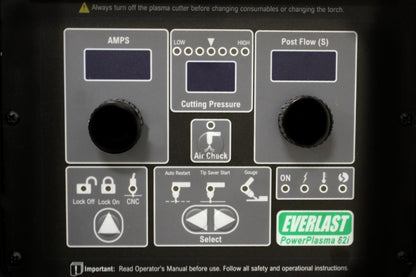

  • Front air pressure gauge allows quick verification of air pressure
  • Over Current and Duty Cycle protection indicates fault with a dedicated warning/diagnostic light, and shuts down output until condition is resolved
  • IGBT modules improve reliability and performance while reducing overall weight

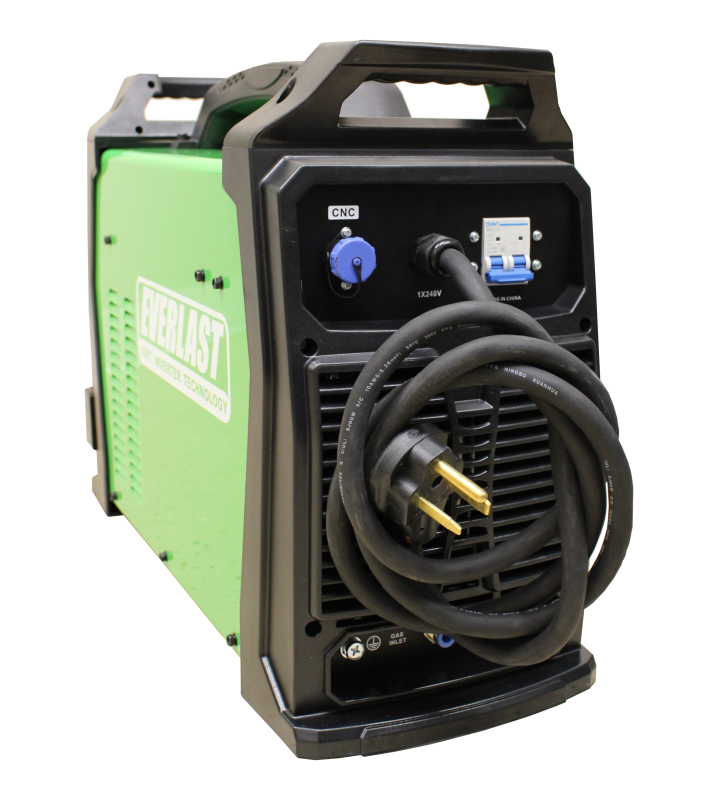

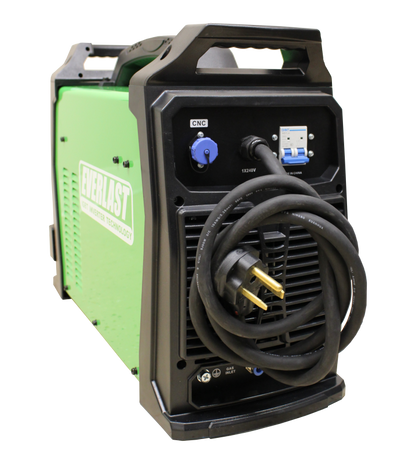

  • CNC socket and CNC torch for plasma table use.



Tech Specs :

- Type:  IGBT
- Voltage/phase:  220/240 V 1 Phase
- Output Amp/Volt Range:  20-80A; 88-112V
- OCV:  240V
- Max Inrush ( I1MAX ) Amps:  68A
- Maximum Rated (I1EFF ) Input Amps:  45.2A
- Duty Cycle At Rated Amps/Volts:  60% @ 80A/112V /  100% @ 63A/105V
- Arc Start Type:  Blow Back (Piston type)
- PilotArc:  Yes
- Torch Type:  Italian designed iPT 80 CNC machine torch
- CNC Interface Port:  Yes
- Adjustable Post Flow Timer:  Yes
- Gouging:  Light to Medium
- Recommended Cutting Air Pressure:  75 psi
- Recommended Compressor Capacity:  7CFM @ 90 psi/ 30 gallon tank
- OK-to-Cut Indicator/Low Air pressure safety:  Yes


Minimum/Maximum:
    • Up to 5/8" daily use with CNC (rated for best cut speed and quality)
    • Up to 1" clean cut with CNC (edge start)
    • Up to 1 3/16" severance cut @ 3-5 ipm
    • Pierce up to 1/2-5/8" with auto THC

    Plasma cutting capacity is affected by several factors.  Ideal cutting conditions require dry air, new consumables, proper air pressure etc.   Quality of cut depends upon consumable orifice size, standoff height,  and travel speed.
