STARTCUT 5×5 Turnkey CNC Plasma Table by CNC X WRIGHT

Ready‑to‑run CNC plasma table designed for shops that want a larger cutting envelope for plate, structural parts, and bigger signs while staying under full 4×8 or 5×10 footprints. It is built as a practical first step into CNC plasma cutting, with a clear upgrade path as your work and budget grow.

Who the STARTCUT 5×5 Is For
- Fabricators and shops cutting larger brackets, plates, frames, and sign work up to 5 ft × 5 ft.
- Buyers who want a more capable starter table that can grow with heavier or larger projects.
- Users who need a larger work area than 4×4 while remaining in a single‑piece table footprint.

What’s Included with the STARTCUT 5×5
STARTCUT 5×5 kits are designed to be as close to plug‑in and start cutting as possible.

Each system includes:

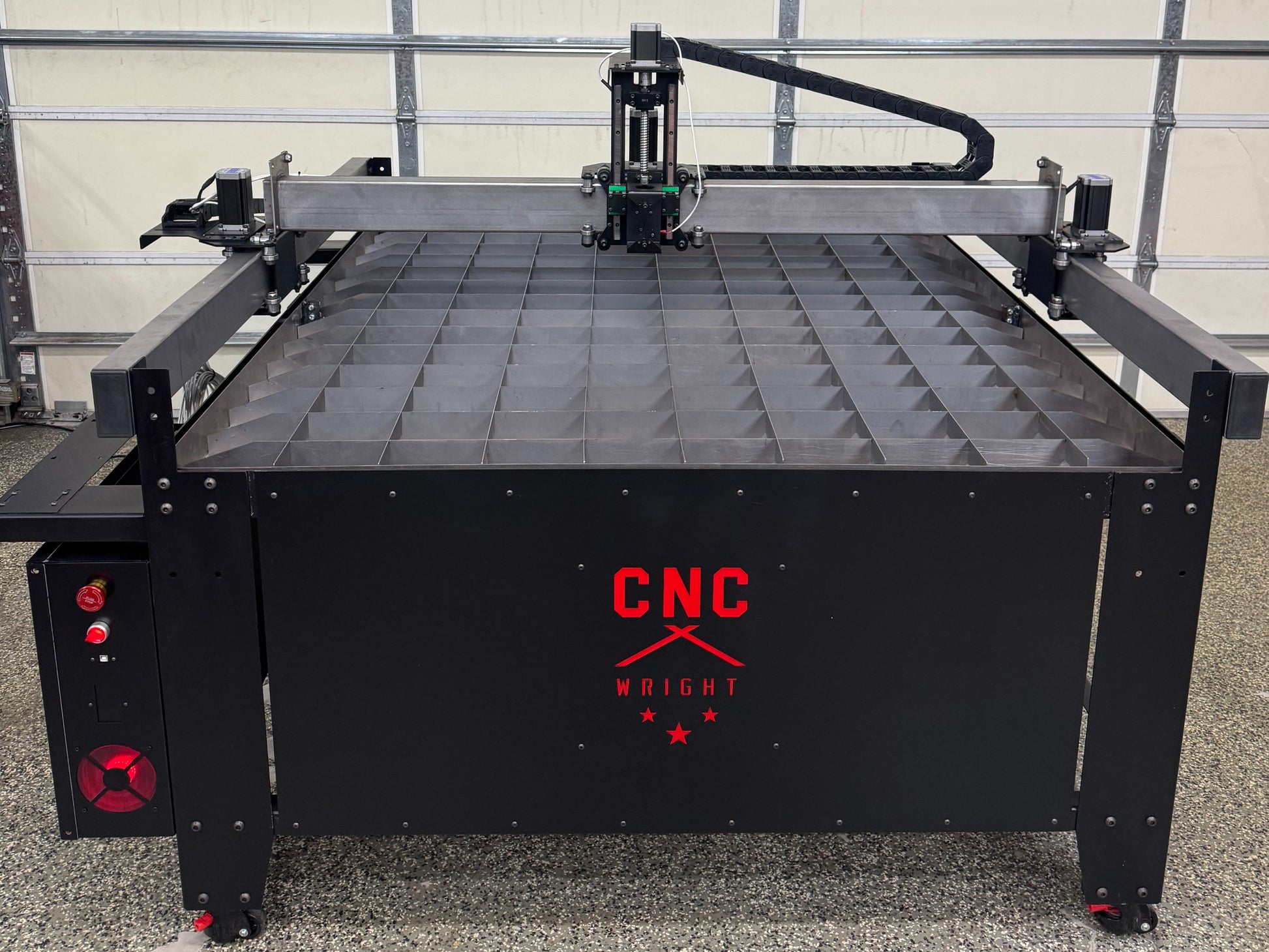

- CNC X WRIGHT STARTCUT 5 ft × 5 ft CNC plasma table with bolted‑together steel frame and motion system.
- Motion components and electronics sized for the 5×5 cutting area.
- Control package matched to this machine and CNC‑ready.
- Automatic torch touch off.
- Core cabling and wiring to connect the table, control, plasma cutter, and compressor.
- PrimeWeld CUT60 Dual Voltage 110V/220V 60‑Amp Plasma Cutter, CNC‑compatible and suitable for shop or home power.
- FORTRESS 27 Gallon, 200 PSI High Performance Oil‑Free Vertical Shop/Auto Air Compressor, with approx. 5.1 SCFM at 90 PSI and 200 PSI max pressure.

Power & Air Requirements (STARTCUT Kits)
STARTCUT CNC plasma table systems are designed to be ready to run with the included PrimeWeld CUT60 plasma cutter and FORTRESS 27 Gallon, 200 PSI air compressor. To get the best performance and avoid nuisance breaker trips, plan your shop power and air like this:

Power for the STARTCUT CNC machine

- One dedicated 15–20 amp 120V circuit for the CNC table controls and motion.

- At least three surge‑protected outlets available at the machine location (or a short, heavy‑duty surge‑protected power strip rated for the load).

Power for the PrimeWeld CUT60 plasma cutter

- Dual‑voltage 110V/220V, 60‑amp CNC‑compatible plasma cutter included with the kit.

- Typical breaker size per the manufacturer: 30A breaker on 120V, 50A breaker on 240V.

- The plasma cutter should have its own dedicated circuit and properly rated outlet, as specified in the PrimeWeld manual. Avoid running it through long, undersized extension cords.

Power for the FORTRESS 27 Gallon, 200 PSI compressor

- 120V, 15A oil‑free vertical compressor included with the kit.

- Requires its own dedicated 120V / 15A circuit for reliable startup and 200 PSI operation.

- Delivers approx. 5.1 SCFM at 90 PSI with a 27‑gallon tank and 200 PSI max pressure.

Air requirements for the CUT60

- PrimeWeld recommends adequate clean, dry air and pressure in the 55–75 PSI range at the cutter for best results.

- The included FORTRESS compressor is sized to support typical CUT60 shop use and STARTCUT cutting loads when plumbed and regulated correctly.

**For safety and best performance, do not run the CNC table, CUT60 plasma cutter, and compressor from a single general‑purpose circuit. Always follow the electrical and air specifications in the PrimeWeld and FORTRESS manuals and your local electrical codes. If you have questions about your shop power or air setup, please contact CNC X WRIGHT before installation.

Why Choose the STARTCUT 5×5
- Larger 5 ft × 5 ft cutting area for bigger brackets, plates, frames, and sign projects.
- A strong step up from smaller tables for shops that want more capacity from day one.
- Bolted‑together frame for easier shipping, delivery, and assembly in tight spaces or through standard doors.
- USA‑designed CNC plasma solution with an upgrade path over time.
- Backed by CNC X WRIGHT shipping, setup, training, and tech support options.

Specifications
- Cutting area: 5 ft × 5 ft (approx. 61 in × 61 in).
- Approximate table footprint: 72" deep × 72" wide × 60" tall (or your actual dimensions).
- Motion system: rack & pinion X, Y axis / ball screw drive Z axis.
- Recommended material thickness range for typical CUT60 use up to 7/8".
- Power requirements: as listed in Power & Air Requirements above.
- Recommended air: compressor output approx. 5.1 SCFM @ 90 PSI, 27‑gallon tank, 200 PSI max.

Shipping, Installation & Support
- Freight shipping and delivery options are available for CNC plasma tables.
- Installation, setup, and training can be arranged through our network in many areas.
- Hourly tech support and training are available by phone or video call.
- Mail‑in troubleshooting and repair are available for certain components.

**Learn more: Shipping / Logistics, Tech Support, and Contact CNC X WRIGHT pages.

Questions About the STARTCUT 5×5

Can I upgrade later?
Yes. STARTCUT is designed as a practical first step. Many buyers upgrade plasma power sources, add accessories, or move up to larger tables as their work grows.

Do you offer setup help or training?
Yes. CNC X WRIGHT offers hourly tech support and training by phone or video, and in some cases installation and training can be arranged through our network.

What size work area do I really get?
The STARTCUT 5×5 is sized for 5 ft × 5 ft work, which is ideal for larger brackets, plates, frames, and sign projects. For even larger work or more advanced configurations, consider CUSTOMCUT or PRO options.

Can I get a shipping quote before I buy?
Yes. You can request a shipping / logistics quote before or after purchase so there are no surprises on freight and delivery.
