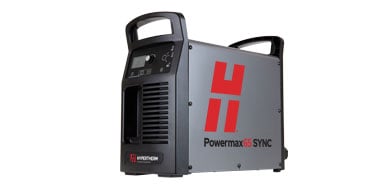

Hypertherm Powermax65 SYNC

A professional-grade step up for serious table work. This system (Hypertherm part #083352) pairs the Powermax65 SYNC power supply, fully equipped for automation with a CPC port, voltage divider and serial port, and a 25 ft 180° SmartSYNC machine torch. Like every plasma cutter from CNC X WRIGHT, it comes with our CNC X WRIGHT Custom CNC Communication Cable, so you can connect it to your table controller right away.

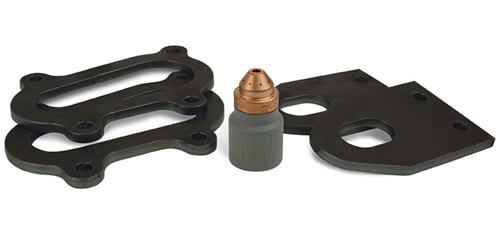

The Powermax65 SYNC cuts 3/4" plate at production speed and handles 1" at 10 inches per minute. Its RFID SmartSYNC torch reads each single-piece cartridge and sets the amperage and mode automatically, so setup errors go away and cartridge changes take seconds. The system tells you when a cartridge is worn out. It also runs on almost any shop power, from 200V to 480V single-phase or 200V to 600V three-phase.

Cut Capacity (mild steel)

• Recommended: 3/4" at 20 inches per minute
• Also cuts 1" at 10 inches per minute
• Severance: 1-1/4" at 5 inches per minute
• Pierce: 5/8" (with automatic torch height control)

Key Features

• CPC port, voltage divider and RS-485 serial port for full CNC and torch height control integration

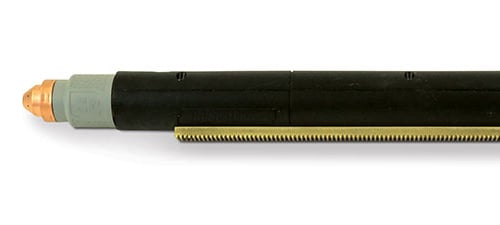

• RFID SmartSYNC machine torch and cartridges set amperage and process automatically
• Single-piece cartridges swap in seconds and eliminate part mix-ups
• End-of-life cartridge detection
• Works on 200–480V single phase or 200–600V three phase
• SpringStart technology for consistent, reliable arc starts
• 91% electrical efficiency

What's in the Box

• Powermax65 SYNC power supply with CPC port, voltage divider and serial port
• CNC X WRIGHT Custom CNC Communication Cable (included free with every CNC X WRIGHT plasma cutter)
• 180° SmartSYNC machine torch with 25 ft lead
• Remote pendant
• 25 ft work cable with ground clamp
• Starter mechanized cartridges
• Operator and safety manuals

Specifications

• Input: 200–480V single phase, or 200–600V three phase, 50/60 Hz
• Input current (240V): 44A single phase / 27A three phase
• Output: 20–65A
• Duty cycle: 50% at 65A (230–600V); 100% at 46A
• Air: clean, dry, oil-free air or nitrogen at 7.5 scfm @ 85 psi
• Dimensions: 19" D × 9.2" W × 17" H
• Weight: 61.7 lb with 25 ft torch
• Warranty: 6 years on the power supply, 1 year on the torch

Good to Know

• Free UPS Ground shipping: shipping is included in the price.
• Use clean, dry air. Moisture and oil in the air line shorten cartridge life.
• SYNC systems only work with SmartSYNC torches; older Powermax65 torches will not connect.

Pair It With

• Our Mach 3 USB or MyPlasm CNC control box, with an automatic torch height control (THC) option
• Questions about fit or setup? Email sales@cncxwright.com, or book Tech & Consult Time.
