Hypertherm Powermax45 SYNC

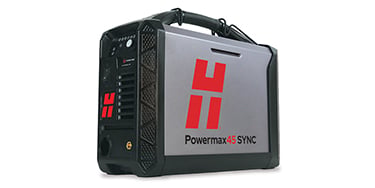

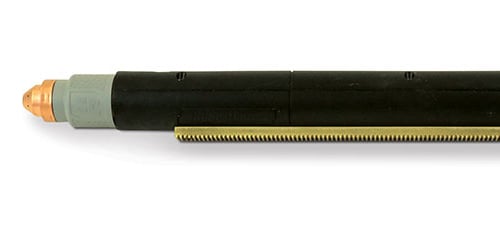

Hypertherm quality, set up for your plasma table. This system (Hypertherm part #088580) pairs the Powermax45 SYNC power supply, with a built-in CPC port and voltage divider for CNC, and a 25 ft 180° SmartSYNC machine torch. Like every plasma cutter from CNC X WRIGHT, it comes with our CNC X WRIGHT Custom CNC Communication Cable, so you can connect it to your table controller right away.

The SYNC platform takes the guesswork out of setup. Each single-piece cartridge has an RFID chip, and the torch reads it and sets the correct amperage and mode automatically, with no dials to get wrong. When a cartridge is worn out, the system tells you. Hypertherm rates cartridge life at up to 5 times longer than standard consumables, and the Powermax line is known for running for decades in the field.

Cut Capacity (mild steel)

• Recommended: 5/8" at 20 inches per minute
• Severance: 1-1/8" at 5 inches per minute
• Pierce: 1/2" (with automatic torch height control)

Key Features

• CPC port and voltage divider for CNC and torch height control
• RFID SmartSYNC torch and cartridges set the amperage and process automatically
• Single-piece cartridges swap in seconds and eliminate part mix-ups
• End-of-life cartridge detection

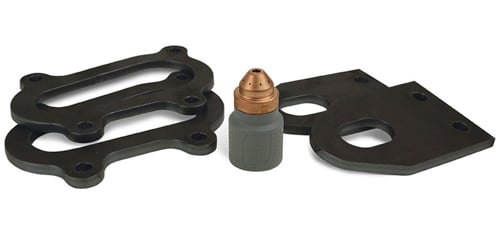

• Also cuts, marks and gouges with the right cartridge
• SpringStart technology for consistent, reliable arc starts
• 90% electrical efficiency

What's in the Box

• Powermax45 SYNC power supply with CPC port and voltage divider
• CNC X WRIGHT Custom CNC Communication Cable (included free with every CNC X WRIGHT plasma cutter)
• 180° SmartSYNC machine torch with 25 ft lead
• Work cable with ground clamp
• Starter cartridge
• Operator's guide

Specifications

• Input: 200–240V, single phase, 50/60 Hz
• Input current: 39A at 200V / 32A at 240V
• Output: 9–45A
• Duty cycle: 50% at 45A; 60% at 41A; 100% at 32A
• Air: clean, dry, oil-free air at 6.7 scfm @ 90 psi
• Dimensions: 17.4" D × 6.8" W × 14.1" H
• Weight: about 31 lb with a 20 ft torch
• Generator: 12.5 kVA (10 kW) for full 45A output
• Warranty: 6 years on the power supply, 1 year on the torch

Good to Know

• Free UPS Ground shipping: shipping is included in the price.
• Use clean, dry air. Moisture and oil in the air line shorten cartridge life.
• This is the 200–240V single-phase model.

Pair It With

• Our Mach 3 USB or MyPlasm CNC control box, with an automatic torch height control (THC) option
• Questions about fit or setup? Email sales@cncxwright.com, or book Tech & Consult Time.
