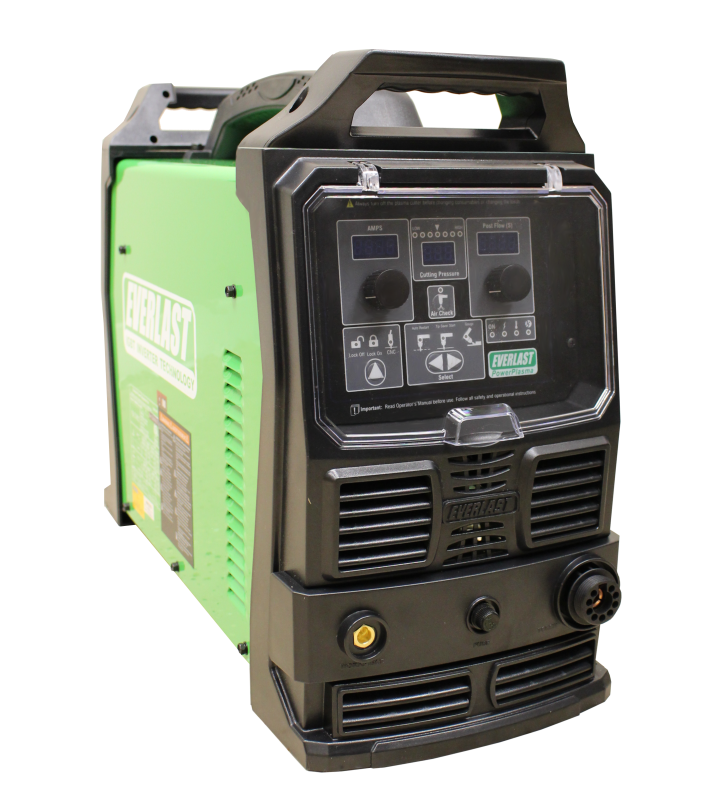

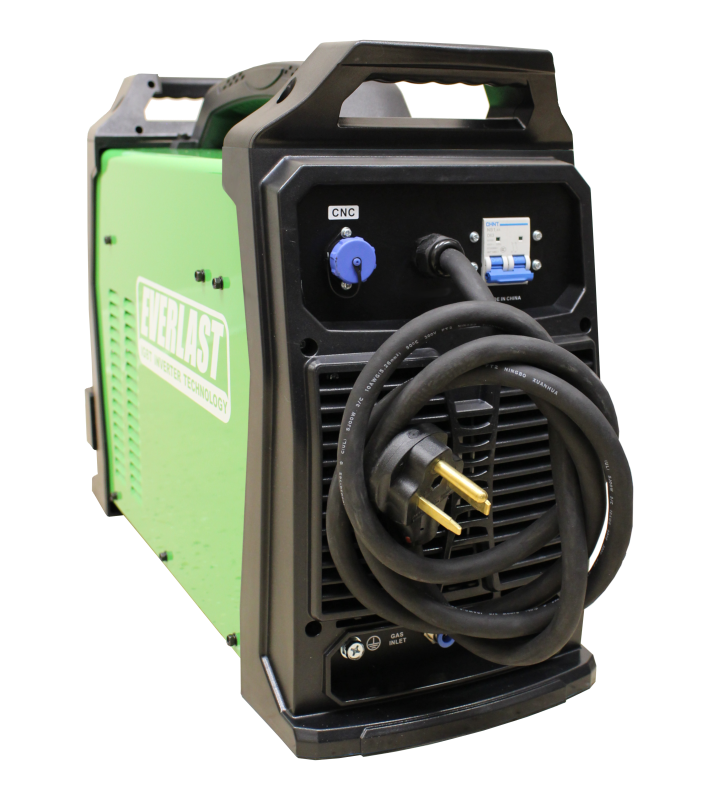

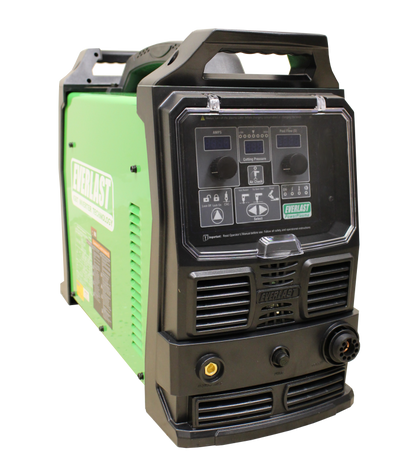

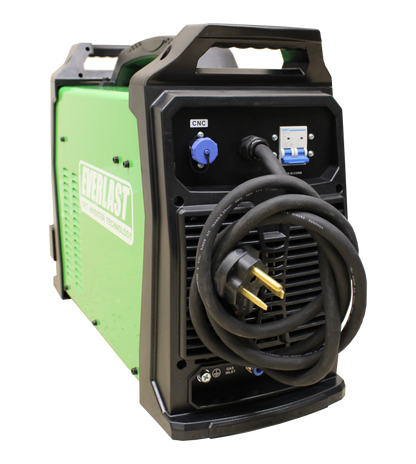

Everlast PowerPlasma 82i

Built for shops that want real cutting power on the table without outgrowing their machine. This package pairs the Everlast PowerPlasma 82i, an 80-amp IGBT inverter plasma cutter, with a dedicated PTM-80 CNC machine torch, and every plasma cutter from CNC X WRIGHT comes with our CNC X WRIGHT Custom CNC Communication Cable so you can connect it to your table controller right away.

The 82i handles 5/8" plate every day and makes quality cuts through 1" at slower speeds. It still runs on standard 240V shop power, so it fits right in a home garage as well as a production fab shop. The Italian-designed PTM-80 torch uses a back-striking blowback start for longer consumable life, and it works with both shielded and unshielded consumables. The high-frequency-free start won't interfere with your table's electronics.

Cut Capacity (CNC)

• Up to 5/8" for everyday production cutting (best speed and quality)
• Up to 1" clean cut (edge start)
• Up to 1-3/16" severance at reduced speed
• Pierces 1/2" to 5/8" with automatic torch height control (THC)

Key Features

• Built-in CNC interface port for plasma table use
• 60% duty cycle at 80A; 100% at 63A
• Blowback pilot arc start (no high frequency) for rusty and painted metal
• 3-second pilot arc tip saver
• Adjustable post-flow up to 50 seconds for longer torch and consumable life
• Front-mounted air pressure gauge and low-air safety
• Over-current and duty cycle protection with a warning light
• Cuts steel, stainless, aluminum, copper, titanium, cast iron and more

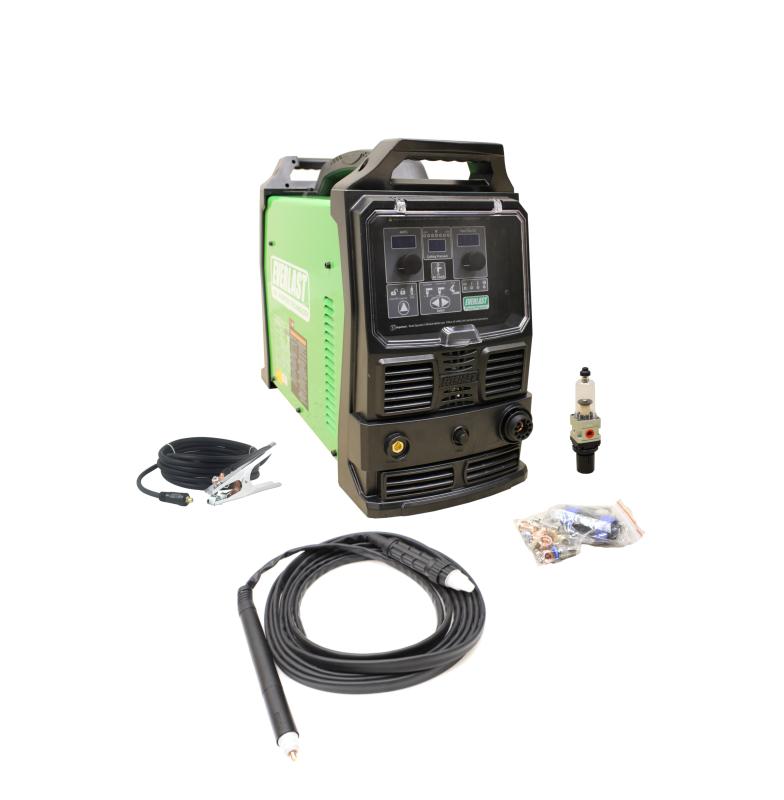

What's in the Box

• PowerPlasma 82i power unit
• CNC X WRIGHT Custom CNC Communication Cable (included free with every CNC X WRIGHT plasma cutter)
• PTM-80 CNC machine torch with 24 ft lead and Euro-style quick connect
• Ground clamp
• Air pressure regulator / water trap
• 12-pin CNC connector
• Starter consumables: 5 electrodes and 5 nozzles (1.2mm)

A hand-held torch is not included, but can be purchased separately.

Specifications

• Input: 220/240V, single phase
• Output: 20–80A
• Max input amps: 58A inrush / 45.2A rated
• Recommended air: 75 psi; compressor 7 CFM @ 90 psi with a 60-gallon tank
• Dimensions: 25" × 9.5" × 15"
• Weight: 53 lb
• Manufacturer warranty: 5 years

Good to Know

• Free UPS Ground shipping: shipping is included in the price.
• A separate inline air dryer is required. The included water trap does not remove all moisture, and wet air shortens consumable life and can damage the torch.
• Generator use requires a "clean power" generator rated for at least 15,000 surge watts.

Pair It With

• Our Mach 3 USB or MyPlasm CNC control box, with an automatic torch height control (THC) option
• Questions about fit or setup? Email sales@cncxwright.com, or book Tech & Consult Time.
