Everlast PowerPlasma 62i

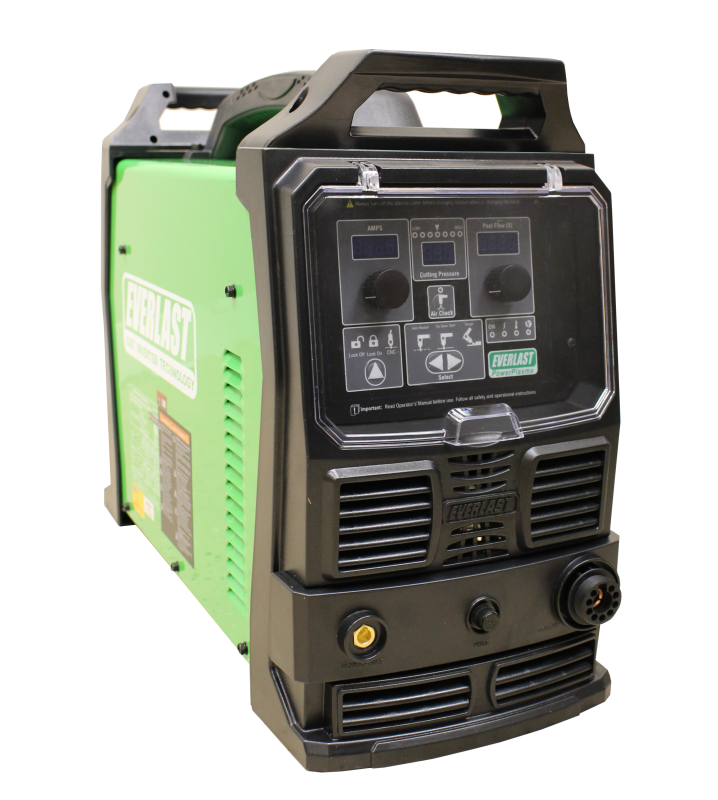

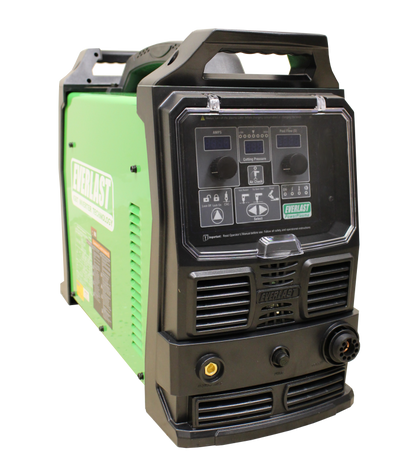

Get your plasma table cutting with a machine that's ready to go out of the box. This package pairs the Everlast PowerPlasma 62i, a 60-amp IGBT inverter plasma cutter, with a dedicated CNC machine torch, and every plasma cutter from CNC X WRIGHT comes with our CNC X WRIGHT Custom CNC Communication Cable so you can connect it to your table controller right away.

It's light enough to move around the shop and tough enough for everyday production work, whether you're cutting parts on weekends or running a small fab shop. The blowback pilot arc starts without high frequency, so it won't interfere with your table's electronics, and it cuts cleanly through rusty or painted steel. A 3-second tip saver shuts the pilot arc off when you're not cutting, so your consumables last longer.

Cut Capacity (CNC)

• Up to 3/8" for everyday production cutting (best speed and quality)
• Up to 3/4" clean cut (edge start)
• Up to 1" severance at reduced speed
• Pierces up to 5/16" (edge start recommended at 3/8" and thicker)

Key Features

• CNC interface port for plasma table use
• 60% duty cycle at 60A; 100% at 50A
• Blowback pilot arc start (no high frequency)
• 3-second pilot arc tip saver
• Adjustable post-flow timer
• Front-mounted air pressure gauge and low-air safety
• Over-current and duty cycle protection with a warning light
• Cuts steel, stainless, aluminum, copper, titanium, cast iron and more

What's in the Box

• PowerPlasma 62i power unit
• CNC X WRIGHT Custom CNC Communication Cable
• PTM-60 CNC machine torch with 24 ft lead and Euro-style quick connect
• Ground clamp with 10 ft cable
• Air pressure regulator / water trap
• Starter consumables: 5 electrodes and 5 nozzles (1.1mm)

A hand-held torch is not included, but can be purchased separately.

Specifications

• Input: 220/240V, single phase
• Output: 20–60A
• Max input amps: 41A inrush / 32.4A rated
• Recommended air: 75 psi at the torch; compressor 6 CFM @ 90 psi with a 30-gallon tank
• Dimensions: 25" × 9.5" × 15"
• Weight: 53 lb
• Manufacturer warranty: 5 years

Good to Know

• Free UPS Ground shipping: shipping is included in the price.
• A separate inline air dryer is required. The included water trap does not remove all moisture, and wet air shortens consumable life and can damage the torch.
• Generator use requires a "clean power" generator rated for at least 10,000 surge watts.

Pair It With

• Our Mach 3 USB or MyPlasm CNC control box, with an automatic torch height control (THC) option
• Questions about fit or setup? Email sales@cncxwright.com, or book Tech & Consult Time.
